How do I import invoices from a Caselle fixed-length file?

Import invoices

If you create an export file from Caselle, it will generate a Caselle Delimited or a Caselle Fixed Length file. These instructions will show you how to import invoices into Caselle Accounts Payable using a Caselle Fixed Length file.

If you're not using an import file that was created by a Caselle app, you'll need to use the instructions for importing invoices from a user-defined delimited file or importing invoices from a user-defined fixed-length file.

In this Topic

How do I import invoices from a Caselle fixed-length file?
1. Before you get started
1. Importing invoices from a Caselle fixed-length file

Before you get started

Before proceeding, back up the current files. Always make a back up of the database BEFORE running routines that modify or delete transactions. To learn more, see How do I back up a database?

Importing invoices from a Caselle fixed-length file

1. Open Connect Accounts Payable > Invoices and Payments > Import Invoices.

2. Use the Import File Type to select Caselle Fixed Length.

A fixed-length file does not use a delimiter, so you can skip the Delimiter field. What is a delimiter?

3. Enter the Import File Name.

The import filename is the filename and file location. This image shows the import file name for a user-defined delimited file, but the Import File Name field works the same way for all import file types.

Import file name

What is the import filename?

The import file is located in the Connect directory. All of the Connect applications are located in the default d:\Connect directory, where you replace d:\ with the appropriate drive letter. If the import file was created and saved to the Connect default directory, then you only need to enter the import filename and extension. For example, ImportFileName.txt
The import file is located in a local or network directory. If you are importing a file that is stored on a disk or hard drive, type in the drive letter and path followed by the import filename and extension. Example: d:\my documents\ImportFileName.txt

The values in the import file display in the preview pane.

Preview pane

The fields that will be imported, are listed in the section titled Import File Fields.

Import file fields

Are all of the fields listed that you want to import?

If a field is missing and you want to add it to the invoice, click the Select Fields button to add the field to the Import File Fields list. If a field is listed and you don't want to import it, click the Select Fields button to delete it from the Import File Fields list.

Select Fields button

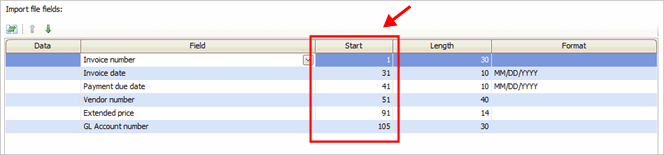

The Start column shows the starting position of each field in the import file.

Start column

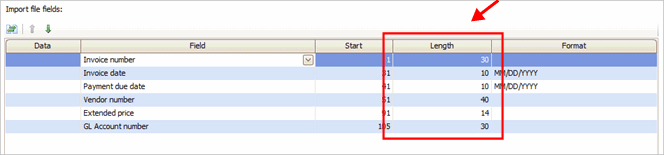

The Length column shows the field length of each field in the import file.

Length column

The Format column shows the format that will be applied to the field value. Note: Only the fields that use a mask to format the field value will show a formatting mask.

Format column

4. Enter the Lines to Skip.

Set up the import invoice options to omit column headings from the import file. A column heading that describes the data in a column but is not necessarily data that you want to use to create an invoice record is a line to skip. In this example, the yellow line is the column-heading row.

Column headings in an import file

To learn more, see How do I omit a row from the import file?

5. Do not select the Update Existing Invoices checkbox.

Update existing invoices checkbox

6. Select the GL Period.

Connect will post the invoice transactions to the selected GL period. This option is only available when the GL Interface is Caselle 4.x.

To learn more, see How do I turn on the General Ledger interface?

GL period

Do you want to use the current period as the GL period?

Yes, I want to use the current GL period. Continue to the next step. The current GL period is the default GL period.
No, I want to use a different GL period. Use the GL Period drop-down list to select a different MM/DD/YYYY.

7. Enter the Vendor Information

When Connect imports the invoice information, Connect will use the default values to fill in the fields on the new invoice when the corresponding field value on the imported invoice is blank.

Default vendor information

Example: City XYZ sets the default values on the Import Invoices view:

Vendor is City XYZ
Invoice Number is 999
Description is Invoice
Invoice Date is 9/2/2019
Payment Due Date is 10/2/2010
Bank is Bank XYZ

GL Activity is 21

1099 Type is None

An invoice is imported with the following information:

Vendor is Bill's Construction
Invoice Number is 10293
Description is BLANK
Invoice Date is 08/20/2019
Payment Due Date is BLANK
Bank is BLANK

GL Activity is BLANK

1099 Type is BLANK

Because the invoice has values that are blank, Connect will use the default values set in the Import Invoices view to fill in the blank values on the invoice. Like this...

Vendor is Bill's Construction
Invoice Number is 10293
Description is Invoice
Invoice Date is 08/20/2019
Payment Due Date is 10/2/2010
Bank is Bank XYZ
GL Activity is 21

1099 Type is None

Vendor

Enter the default vendor. If the imported invoice does not include a vendor, Connect will use the default vendor.

Invoice number

Enter the starting invoice number. If the imported invoice does not include an invoice number, Connect will use the starting invoice number to assign the invoice number to the first imported invoice that doesn't have an invoice number. Connect will auto-increment the starting invoice number to assign the next invoice number to the next imported invoice that is missing an invoice number.

Description

Enter the default invoice detail description. If the imported invoice does not include an invoice detail description, Connect will use the default description.

Invoice date

Enter the default invoice date. If the imported invoice does not include an invoice date, Connect will use the default invoice date.

Payment due date

Enter the default payment due date. If the imported invoice does not include a payment due date, Connect will use the default payment due date.

Bank

Enter the default bank. If the imported invoice does not include a bank, Connect will use the default bank.

GL activity

Enter the default GL activity, if you're using GL activity reporting to track GL activity codes in Connect Accounts Payable. If the imported invoice does not include a GL activity code, Connect will use the default GL activity.

1099 type

Enter the default 1099 type. If the imported invoice does not include a 1099 type, Connect will use the default 1099 type.

8. Click GO (CTRL+G).

Connect runs the routine and generates the print output option that you have selected.
