2019 SWT
Instructions for Colorado State tax rates.
In this Topic Hide
Use the amounts displayed in the following table to update the Calculation table with the state withholding rates and modifiers.
Table 1: 2019 COLORADO STATE WITHHOLDING - SINGLE
Line No |
Wages Not Over |
Tax Amount |
Tax Rates |
1 |
3,800.00 |
0.00 |
0.00% |
2 |
9,999,999.99 |
0.00 |
4.63% |
Do this...
1. Open Connect Payroll > Organization > Calculation Tables.
2. Click Colorado Single Withholding Tax Rates.
3. Enter the Not Over amount for the first row.
4. Enter the Tax Amount.
5. Enter the Tax Rate.
6. When you press Enter, the cursor displays in the Tax Rate field.
The next row of information displays.
7. Repeat steps 1 to 6 until the calculation table looks like this...

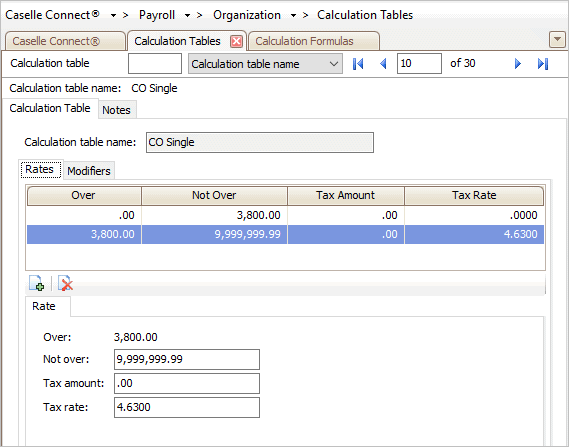

Colorado Withholding - Single Rate
8. Click the Modifiers tab.
Change the Exemption Amount to 4,200.00
Change the 6 or More Allowances Exemption Amount to 25,200.00
It will look like this when you’re done...

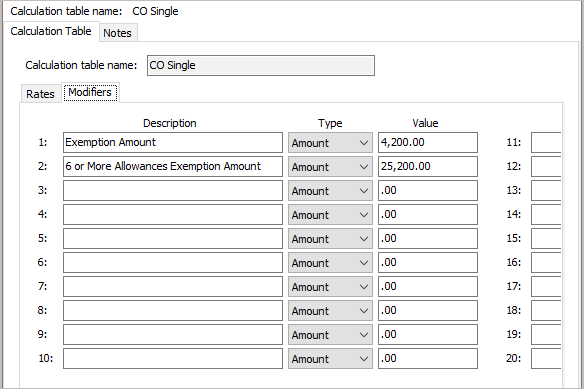

Colorado Withholding - Single Modifiers
2019Jan11
Table 2: 2019 Colorado State Withholding - Married
Line No |
Wages Not Over |
Tax Amount |
Tax Rates |
1 |
11,800.00 |
0.00 |
0.00% |
2 |
9,999,999.99 |
0.00 |
4.63% |
Do this...
1. Open Connect Payroll > Organization > Calculation Tables.
2. Click Colorado Married Withholding Tax Rates.
3. Enter the Not Over amount for the first row.
4. Enter the Tax Amount.
5. Enter the Tax Rate.
6. When you press Enter, the cursor displays in the Tax Rate field.
The next row of information displays.
7. Repeat steps 1 to 6 until the calculation table looks like this...
Colorado Withholding - Married Rates
8. Click the Modifiers tab.
Change the Exemption Amount to 4,200.00
Change the 6 or More Allowances Exemption Amount to 25,200.00
It will look like this when you’re done...
Colorado Withholding - Married Modifiers
2019Jan11
Update the calculation formula to use the new formula to calculate the state withholding rates.
Do this...
1. Open Connect Payroll > Organization > Calculation Formulas.
2. Select the Colorado State Withholding formula.
3. Click the Calculation Formula tab.

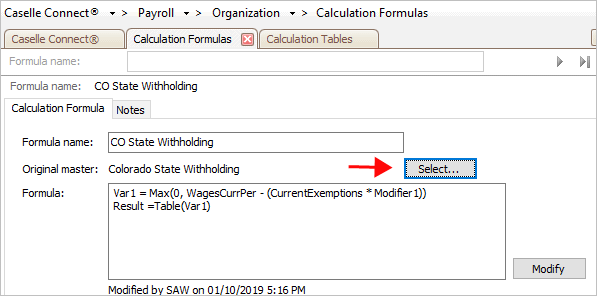

4. Click Select.
Why can't I click any
buttons? Check the Restricted Fields button on the toolbar. If
it looks like a locked padlock, you'll need to click on the Restricted
Fields button to unlock the restricted fields.
Restricted Fields button
on the toolbar
To learn more, see the help topic titled How do I edit
a restricted field?
Select button
5. When you are prompted to replace the existing formula with master, click Yes.
Replace With Master
The Import Master form displays.
6. Select the Colorado State Withholding formula and then click OK.

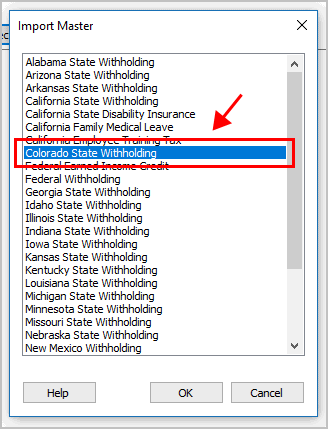

Import Master List
The calculation formula that is saved in the application displays on the screen.
CO State Withholding Master Formula for 2018
7. Review the calculation formula carefully.
Note: Connect version 2018.11 does not include the 2019 master formula. You will need to copy and paste the CO State Withholding formula, as it is shown below, in the Formula field.
You’ll want to make sure the calculation formula in the Payroll application looks exactly like the calculation formula, shown below.
Var1=IIF(CurrentExemptions<6,Max(0,WagesCurrPer-(CurrentExemptions*Modifier1)),0)
Var2=IIF(CurrentExemptions>=6,Max(0,WagesCurrPer-Modifier2),0)
Var3=Var1+Var2
Result=Table(Var3)
When you're done, the Formula field should look like this...

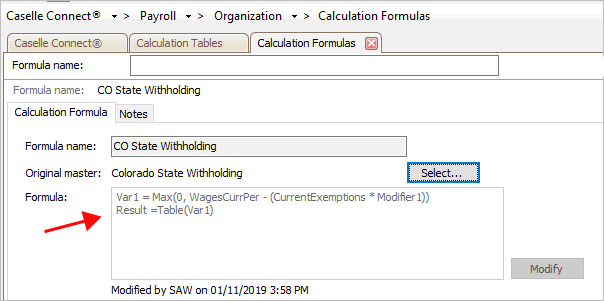

Colorado State Withholding Master Formula for 2019
Does the formula in Payroll match the formula shown above?
Yes, it matches. That’s good news.
No, it doesn’t match. Copy and paste the formula, displayed above, into the Formula field.
Why can't I click any
buttons? Check the Restricted Fields button on the toolbar. If
it looks like a locked padlock, you'll need to click on the Restricted
Fields button to unlock the restricted fields.
Restricted Fields button
on the toolbar
To learn more, see the help topic titled How do I edit
a restricted field?
9. Click Save.
You have finished updating the tax calculation formula for Colorado State Withholding.
2019Jan11
Link the SWT calculation (Connect Payroll > Organization > Calculations) to the calculation formula, calculation table, and pay code type.
Colorado state withholding does not require this step.
Updated 02May2018
Check the pay code that calculates the state withholding tax to make sure it is set up correctly and it will round amounts to the nearest dollar.
Do this...
1. Open Connect Payroll > Organization > Pay Codes.
2. Use the field titled Pay Code to enter the State Withholding Pay Code.
Usually, the pay code for state withholding tax is pay code 77-00.
3. Click to select the Employee tab.
4. Click to select the Employee subtab.
5. Click to select the checkbox titled Round Amounts to Nearest Dollar.
The Round Amounts to Nearest Dollar checkbox should be selected on the Employee subtab, like this...
Round Amounts to Nearest Dollar in Pay Codes
Note: This screenshot shows the Round Amounts to Nearest Dollar checkbox on the Employee subtab. The rest of the options on pay code 77-00 State Withholding Tax will be set up for your state's withholding tax and may not look exactly like the fields that are shown here.
6. Click Save (CTRL+S).
The state withholding pay code is set up correctly. You’re done!
2019Jan07
